Would like papers: Pflueger Summit 1993L casting reel

[REELLIFE]

Would like to obtain a copy of the Pflueger Summit (1993L) papers. I've just been given this reel and would like to clean and oil it. This will all be new to me fixing and tinkering a reel of this style. I'm using the reel for some target casting with a friend who got me interested in this event.
Any assistance into working with this reel will be appreciated.
Thank you.

[wrong99]

Is it the schematic that you need?
Mark

[REELLIFE]

Yes...Thank you...Anything to get me started and visualizing.
Much appreciated.

BOB M

[wrong99]

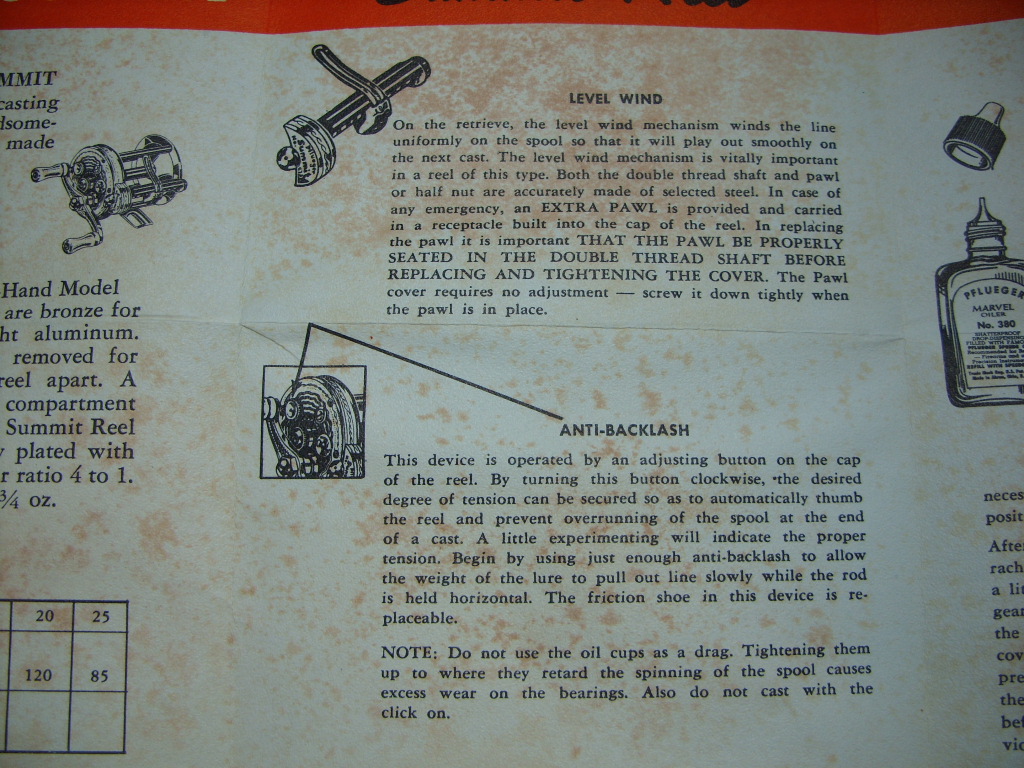

Here's photos of instructions from a post-war Summit. Click on photos to enlarge.

[REELLIFE]

Thanx, Mark. Nice to know people like you on this forum.
This is a big help.
Travel well. Stay safe.

[REELLIFE]

Mark...

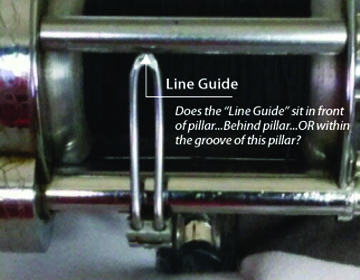

You helped me tremendously understanding a Pflueger Summit with some papers/directions, etc. a few days ago... I have question and perhaps the attached jpeg might help.
When I cleaned the reel...and wasn't much to clean, and oiled it I noticed the Guide Line
was behind the pillar...I adjusted it and slipped it into the groove which is on the pillar...Now as I look at other reels, I'm wondering if it should be in that groove.
I'm a little confused...Can you add to this and help me understand this?
Thank you,
Bob

[wrong99]

Yes, it should ride in that groove.
Mark
