Langley Spinlite R810

Midway Tommy D · Post by **Midway Tommy D** » Mon Oct 30, 2023 11:30 am

Anybody have a schematic for a Langley Spinlite R810 they would be willing to share? I'm doing a complete tear down & service and a schematic would sure come in handy disassembling this interesting design.

colby sorrells · Post by **colby sorrells** » Mon Oct 30, 2023 1:17 pm

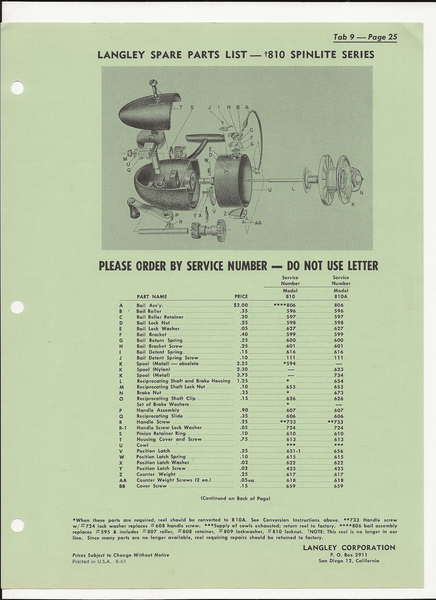

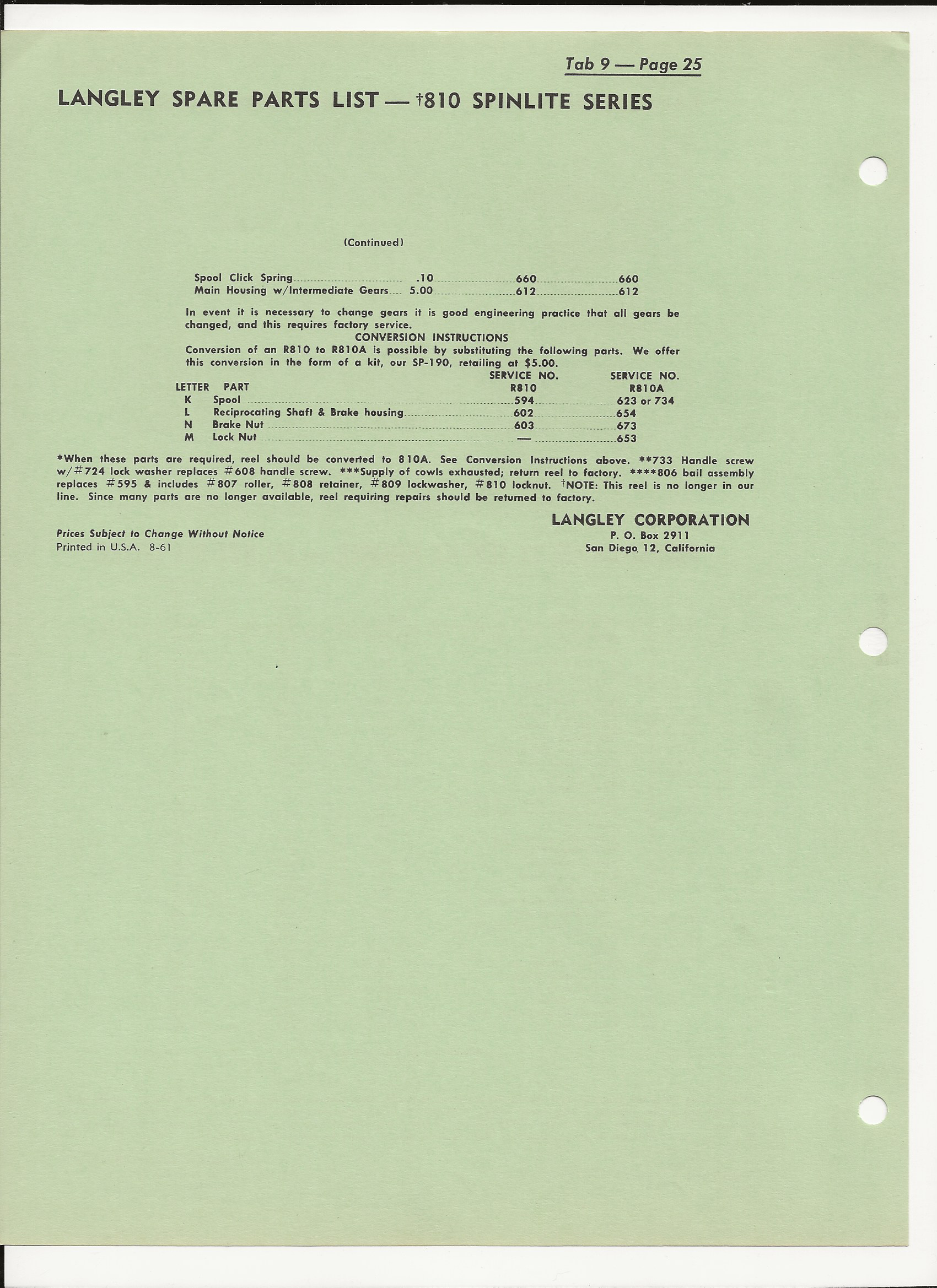

Done.

Keepin' It Fun!

Colby

Midway Tommy D · Post by **Midway Tommy D** » Mon Oct 30, 2023 1:23 pm

Thank you, Kind Sir!

I owe you big time, Colby!

colby sorrells · Post by **colby sorrells** » Mon Oct 30, 2023 1:29 pm

To you my friend - no charge! Pass it along.

Keepin' It Fun!

Colby

Midway Tommy D · Post by **Midway Tommy D** » Mon Oct 30, 2023 1:53 pm

I thought it looked like there was an e-clip (S) retaining the rotor but it's tough to see down in that dark little crack, especially with these old eye balls.

I'm a little surprised they didn't part # the gears.

Thanks again Colby!

Jonathan P. Kring · Post by **Jonathan P. Kring** » Mon Oct 30, 2023 10:28 pm

TWO OF ''The +++++All Time ORCA Good Guys"
