Langley with a loose shaft

Post by Chad J »

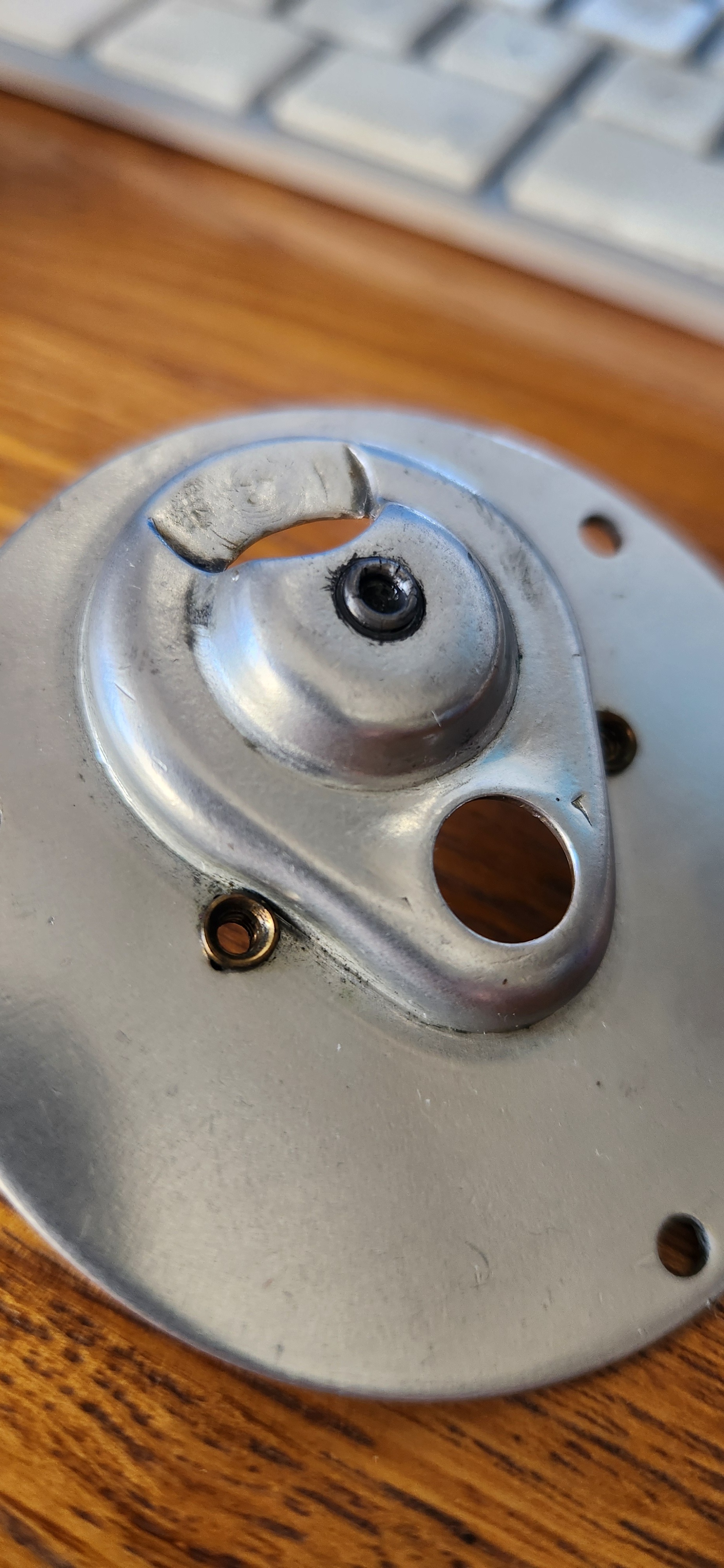

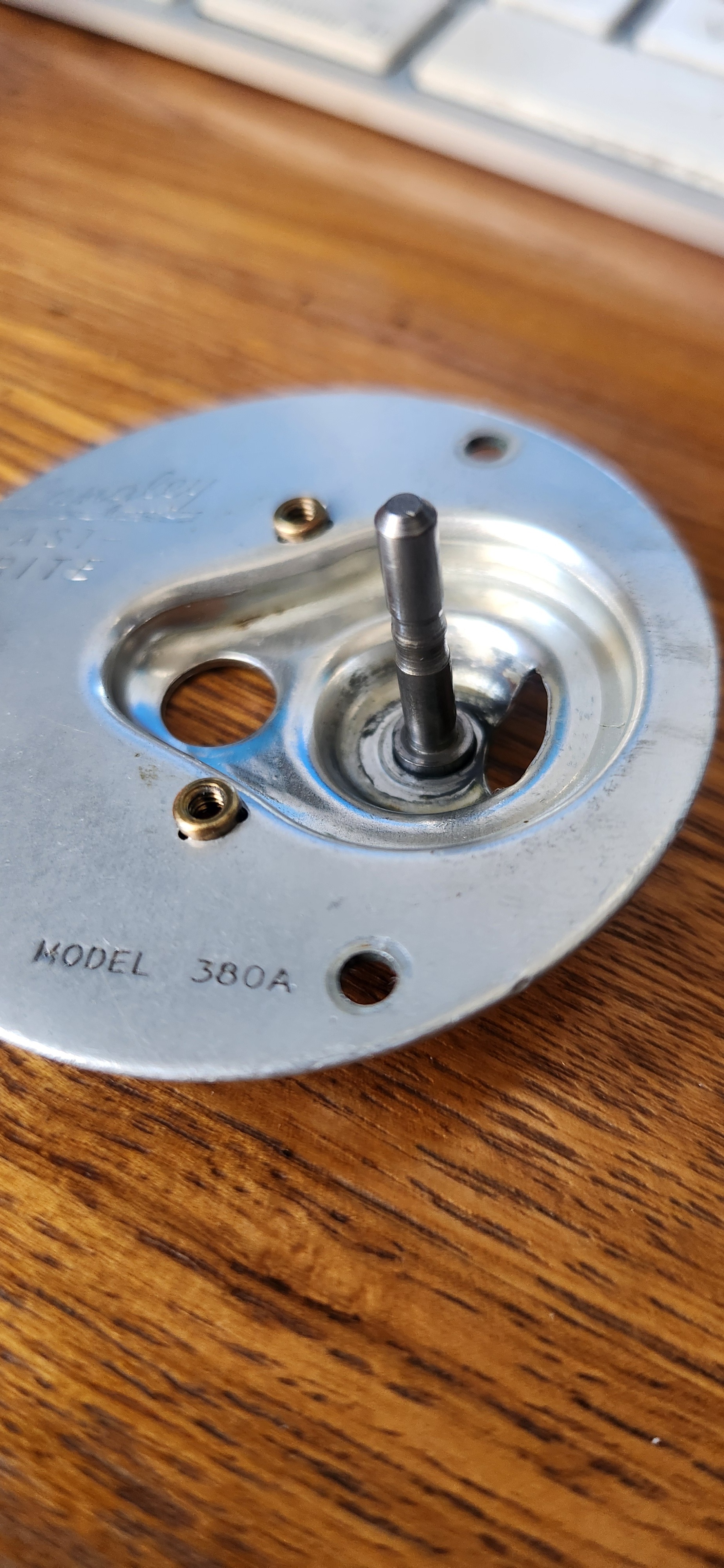

Any suggestions on how to tighten up the shaft that is attached to the faceplate without specialty tools? It has quite a bit of wobble.


oc1
Advanced Board Poster
Posts: 243
Joined: Wed Aug 24, 2016 2:49 pm
Location: Windward Oahu

Re: Langley with a loose shaft

Post by oc1 »

Personally, I would support the side plate on a metal cone of some sort (like a punch) inserted into the post hole. Then tap the other end of the post with a hammer to make it flare out over the cone and tighten the connection. You may then need to file the distal end of the post to remove any burr formed when it was tapped with a hammer.
User avatar
john elder
Star Board Poster
Posts: 8668
Joined: Mon Sep 22, 2003 2:44 pm

Re: Langley with a loose shaft

Post by john elder »

+1
ORCA member since 1999
Honorary Life Member

Specializing in saltwater reels...and fly reels...and oh, yeah, kentucky style reels.....and those tiny little RP reels.....oh, heck...i collect fishing reels!...and fly rods....and lures
Chad J
Frequent Board Poster
Posts: 29
Joined: Wed Jun 19, 2024 7:09 pm

Re: Langley with a loose shaft

Post by Chad J »

oc1 wrote: Mon Aug 19, 2024 1:43 pm Personally, I would support the side plate on a metal cone of some sort (like a punch) inserted into the post hole. Then tap the other end of the post with a hammer to make it flare out over the cone and tighten the connection. You may then need to file the distal end of the post to remove any burr formed when it was tapped with a hammer.
Worked like a charm. Thanks.
